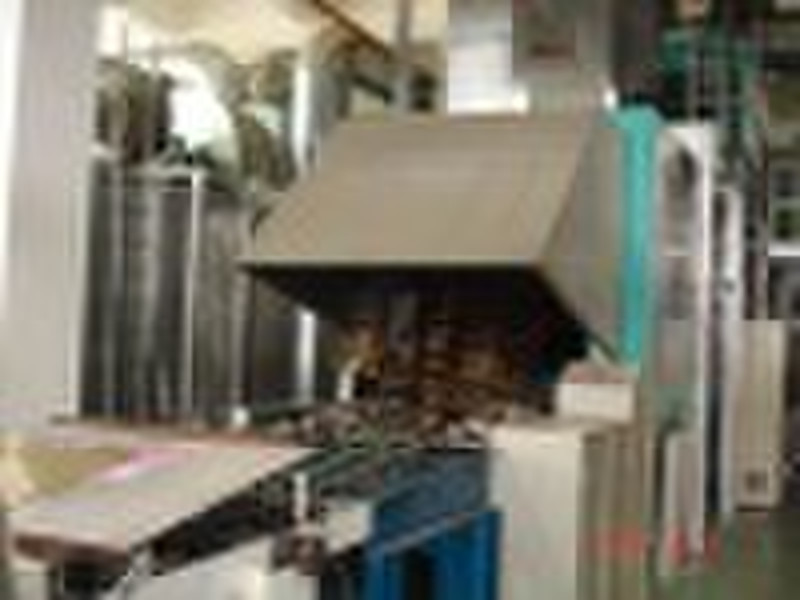

oven

Max.speed 6000 sheets/hrMax. oven working temp. 230°CThe length of oven 18m 42mThe total length of equipment 30.62m 60.17 mTime for sheets baking in baking zone Speed of 4800 sheets/hr, 10 minute Speed of 5100 sheets/hr, 9.4 minute Speed of 5400 sheets/hr, 8.9 minute Speed of 6000 sheets/hr, 8 minute Max. size of metal sheet 1143×965mm Min. size of metal sheet 710×508mm Thickness of metal sheet 0.15-0.4mm Fuel LPG or Natural Gas Cooling zone 3.33 m 8.88m Quantities of heating chamber 1 4 units Cooling zone air intake volume 25000 74000 m3/hr Cooling zone air outlet volume 27500 80000 m3/hr Fresh air supply not exceed 2300 7000m3/hr Front exhaust air volume about 4500 20000m3/hr Rear exhaust air volume about 2000 7000m3/hr The equipment is an automatic continous drying line, which is applied to containers and metal sheets printing, coating, drying, cooling, unloading and collecting. Fuel used for this machine can be city coal gas, natural gas, liquefied gas, light diesel oil (viscosity: 1.5 Engl.) , coal and electricity. It is applicable to metal sheets with different specifications and purposes. FEATURES The fore-and-aft transmission of the device adopts a closed type. Pneumatic control in unloading protection, conveying chains staining, unloading correction device and stacking correction. Variable frequency control in synchronization. Magnetic buffer device in sheet feedings air blowing and sucking. Fuel heating method can be direct buring or indirect burning .
