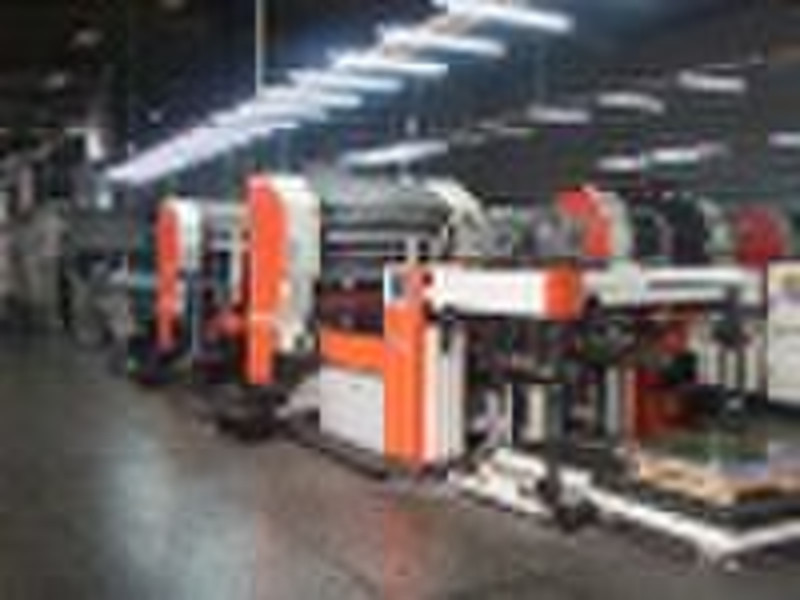

metal printing machine

1. Technical SpecificationMax. size of metal plate 1145×950mm Min. size of metal plate 712×510mm Thickness of metal plate 0.15-0.4mm Max. space of printing 1135×945mm Size of printing plate 1160×1040×0.3mm Size of rubber plate 1175×1135×1.9mm Blank side width 6mm Max. speed 5000/ (sheets/hr) Max. Material feeding 2.0 (ton) Power of main motor 15KW+15KW Capacity of air pump 140/ (m3/hr) ×× Dimension of press(L×W×H) 11300×2800×2460mm (have no Inspection table 16250×2800×2460mm (have Inspection table) Weight of pressca45000kg 2. Main equipments l Feeding unit 1 l Pushing unit 2 l Printing unit 2 l output unit 2 Main feature of this machine: a. All driving gears are located outside of the frame of the drive side for easy operation. b. Three printing cylinders are arranged in vertical way for easy operation.c. The drive system of ink supply and water supply can be separated from main machine as necessary to avoid dry abrasion of the rubber roller. d. adjustment structure for water/ink roller is advanced featuring easy operation, aslo dynamicadjustment can be realized. e. Shaft-less technology is used , two color units are controlled sepratly by individual servo motor featuring high independence.f. Pneumatic clutches with simple structure are used for all cylinders, rollers, delivery frame and two-sheet ejector. G. Water duct roller and ink duct roller are controlled seprately by step-less variable frequency motor to synchronize with the main machine speed. H. Hard lining makes solid printed dots. I. Sufficient lubrication by fixed points with fixed intervals and quantity without leak. J. Direct dispalay for man-machine interface, easy to learn and operate.
